SONY MODEL TFM-825J


SONY MODEL TFM-825J FM/AM 2BAND RADIO
SONY MODEL TFM-825J FM/AM 2BAND RADIO
SONY MODEL TFM-825J FM/AM 2BAND RADIOです。このレトロなデザインがとっても格好良いです。
1963年にグッドデザイン賞に選ばれたラジオのようです。

Number of Transistors 8
Main principle Superheterodyne (common); ZF/IF 455/10700 kHz; 2 AF stage(s)
Tuned circuits 5 AM circuit(s) 8 FM circuit(s)
Wave bands Broadcast (BC) and FM or UHF.
Power type and voltage Dry Batteries / 9 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical / O 5 cm = 2 inch
Power out 0.2 W (unknown quality)
Material Plastics (no bakelite or catalin) from Radiomuseum.org
Model: TFM-825J - Sony Corporation; Tokyo
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 73 x 113 x 34 mm / 2.9 x 4.4 x 1.3 inch
Notes Das Gehause besteht aus einem Spritzgussvorderteil und einer Ruckseite aus Plastik.

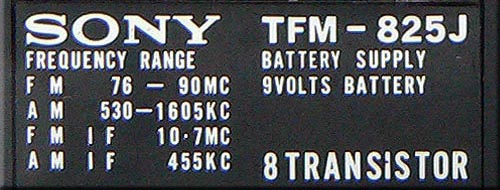

FM: 76 - 90 MHz, AM: 530 - 1620 kHz
