STANDARD MODEL SR-G700

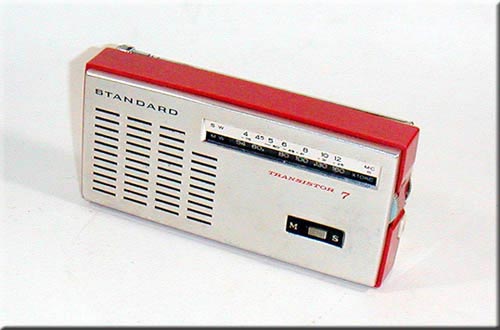

STANDARD MODEL SR-G700 MW/SW 2BANDです。(赤色)
STANDARD MODEL SR-G700 MW/SW 2BANDです。(赤色)です。
ネット調べ
1961 年頃の製品
Number of Transistors 7 Semiconductors
Main principle Superheterodyne (common); ZF/IF 455 kHz
Tuned circuits 5 AM circuit(s)
Wave bands Broadcast and Short Wave (SW).
Power type and voltage Dry Batteries / 3 × 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / O 6.5 cm = 2.6 inch
Power out 0.3 W (unknown quality)
Material Plastics (no bakelite or catalin)
from Radiomuseum.org Model: SR-G700 - Standard Radio Corp. SR, Tokyo
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 164 x 79 x 36 mm / 6.5 x 3.1 x 1.4 inch
Net weight (2.2 lb = 1 kg)0.4 kg / 0 lb 14.1 oz (0.881 lb)
